3D Printing Lab

Specialized additive manufacturing equipment and materials are available for your fabrication needs. Whether you need a functional prototype in a specific material, a visually realistic full-color model, or a high-resolution part, we have the service available for you.

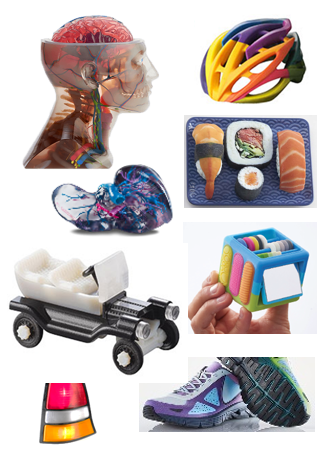

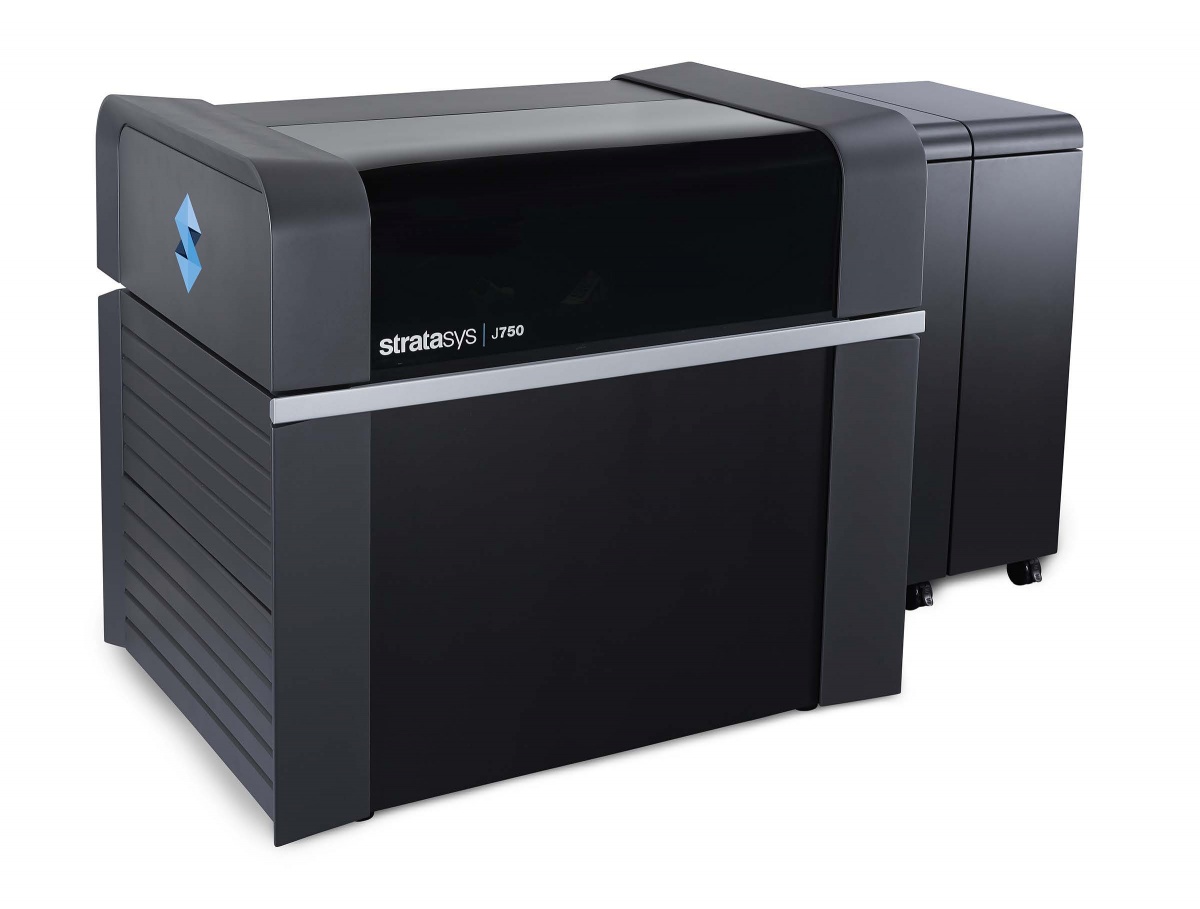

Stratasys J750

A collection of items that relate to the Printer

Stratasys J750

Full color, multi-material, high resolution 3D printer

Process

  • PolyJet Technology (Resin)
  • Microscopic layer resolution and accuracy down to 0.1 mm

Material Options

  • VeroTM opaque materials (neutral and vibrant colors)
  • TangoTM flexible materials
  • Transparent VeroClearTM & RGD720

Build Volume Size

  • 490 x 390 x 200 mm

Printer Benefits

  • Unmatched Product Realism
    • True, full-color capabilities with texture mapping and color gradients
    • 360,000+ color combinations to choose from & multi-material capabilities
  • Maximum Versatility
    • Vast array of color & material properties, from rigid to flexible & opaque to transparent
    • Ability to print many diverse materials in one job or part

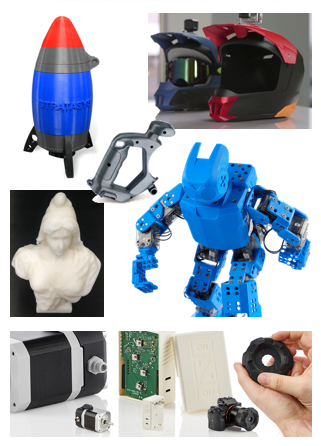

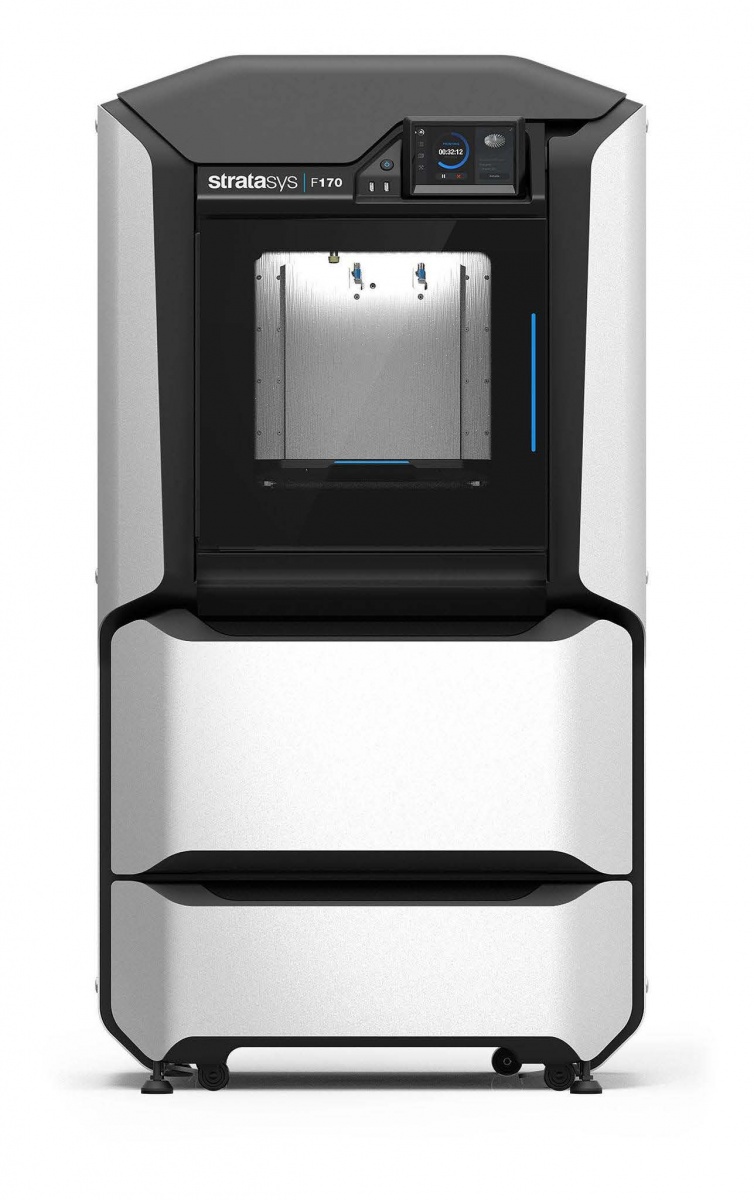

Stratasys F170

A collection of items that relate to the Printer

Stratasys F170

Single color and high resolution 3D printer

Process

  • FDM (Fused Deposition Modeling) Technology
  • Accuracy of +/- 0.2 mm (about 0.01 in)

Material Options

  • ABS-M30TM
  • ASA (Special Request)
  • Soluble QSR Support Material (Default)

Build Volume Size

  • 254 x 254 x 254 mm

Printer Benefits

  • Smarter Prototyping
    • Excels at all stages of the design; from draft concept to high-quality functional prototypes
  • Versatility & Performance
    • Ability to print everything from fast, low-cost concept models to durable assemblies

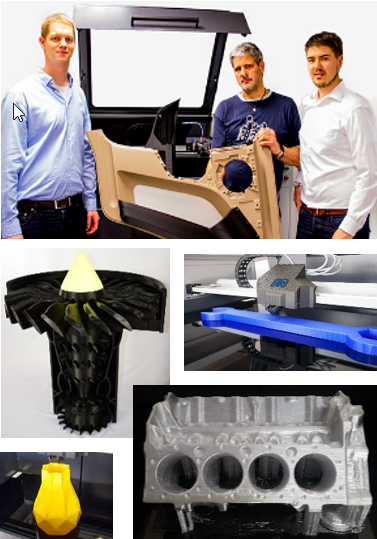

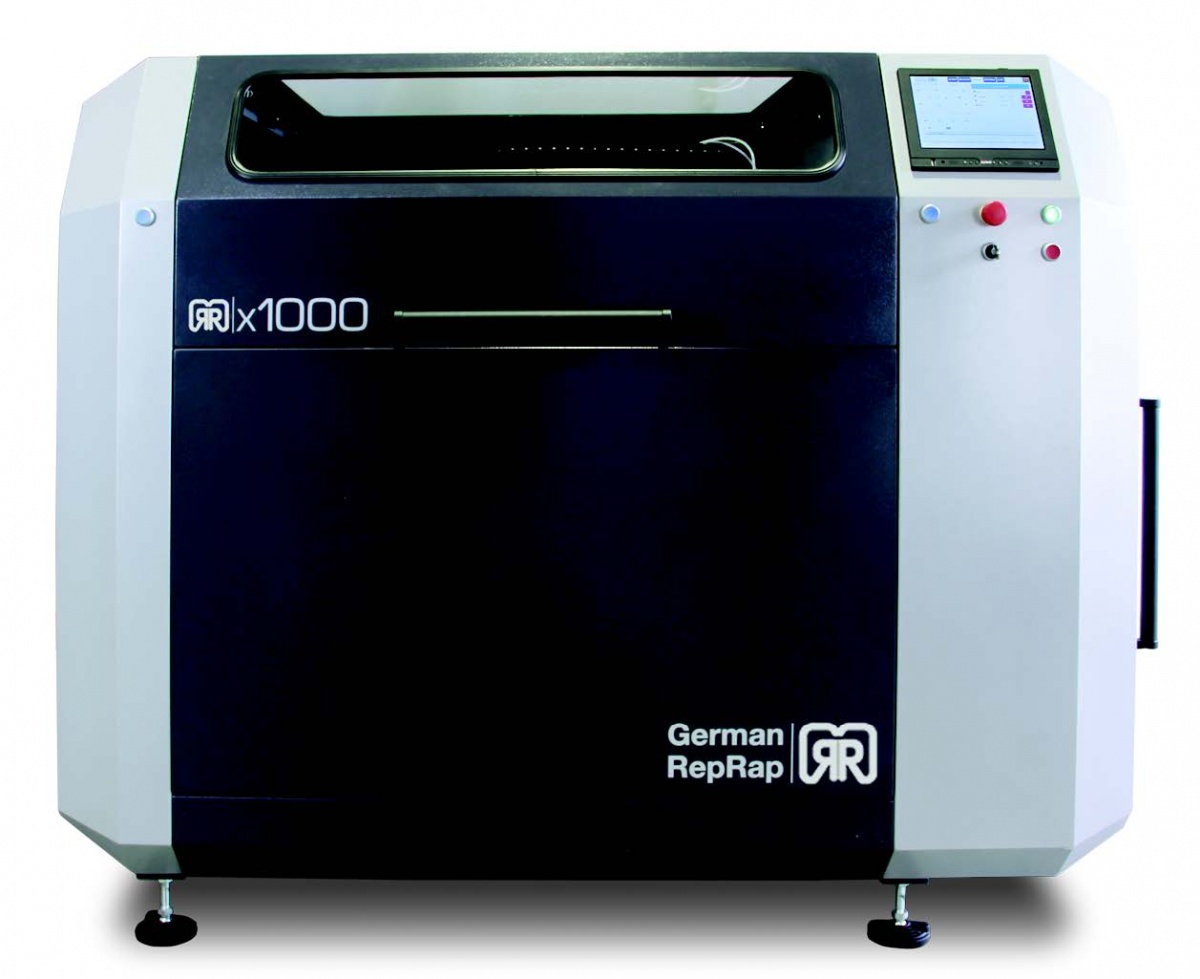

German RepRap X1000

A collection of items that relate to the Printer

German RepRap X1000

One of the largest 3D Printer with a closed building chamber

Process

  • FFF (Fused Filament Fabrication) Technology
  • Accuracy of +/- 0.2 mm (about 0.01 in)

Material Options

  • PETG (Ask us about the current color options; varies)

Build Volume Size

  • 1000 x 800 x 600 mm (39.4 x 31.5 x 23.6 in)

Printer Benefits

  • Fast and Precise Printing
    • Option to print quick and fast with up to 1 mm nozzle or precise prints with 0.1 mm nozzle
    • Two print heads and two filament feeders
  • Large Print Bed
    • Capabilities to print industrial sized parts
    • Functional parts, tools, molds, and jigs
    • Nesting option for small to medium parts, at larger quantities

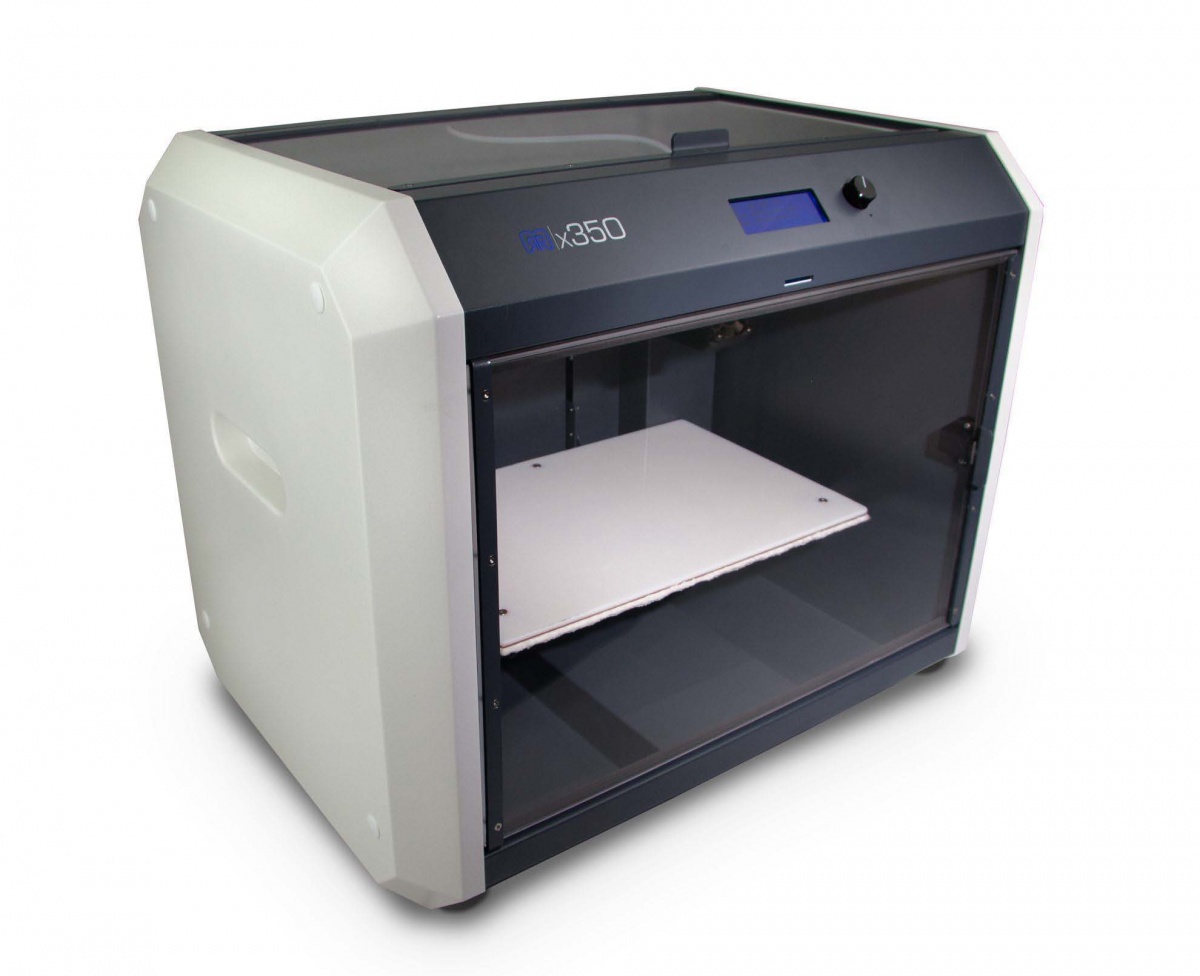

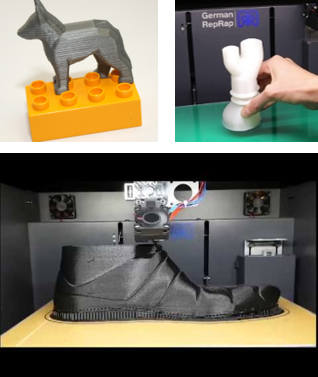

German RepRap X350 Pro

A collection of items that relate to the Printer

German RepRap X350 Pro

Process

  • FFF (Fused Filament Fabrication) Technology
  • Accuracy of +/- 0.2 mm (about 0.01 in)

Material Options

  • PETG (Ask us about the current color options; varies)

Build Volume Size

350 x 200 x 210 mm (13.8 x 7.9 x 8.3 in)

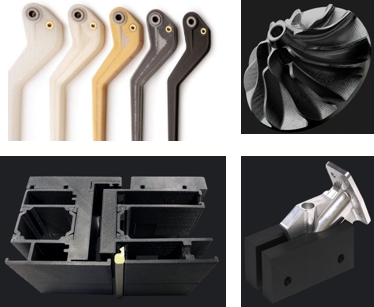

Markforged Mark Two

A collection of items that relate to the Printer

Markforged Mark Two

The strength of aluminum with revolutionary carbon fiber 3D printing



Process

  • FFF (Fused Filament Fabrication) Technology

Material Options

  • Nylon
  • Onyx

Reinforcement Material

  • Carbon fiber (Special Request Only; ask us how we can implement these in your designs)
  • Fiberglass (Special Request Only; ask us how we can implement these in your designs)
  • Kevlar (Special Request Only; ask us how we can implement these in your designs)

Build Volume Size

  • 320 x 132 x 154 mm (12.5 x 5.2 x 6 in)

Printer Benefits

  • Continuous Fiber Composite Printing
    • Plastic shell reinforced with Carbon Fiber, Fiberglass or Kevlar
    • Part strength greatly increased with direction of the fiber orientation (concentric or isotropic direction)
  • Industrial Grade Parts
    • Produces the strength for tooling and functional parts
    • Combines stiffness and durability
    • Carbon fiber parts are as strong as aluminum, produced 50x faster, at a fraction of the cost

Laser Cutting and Engraving

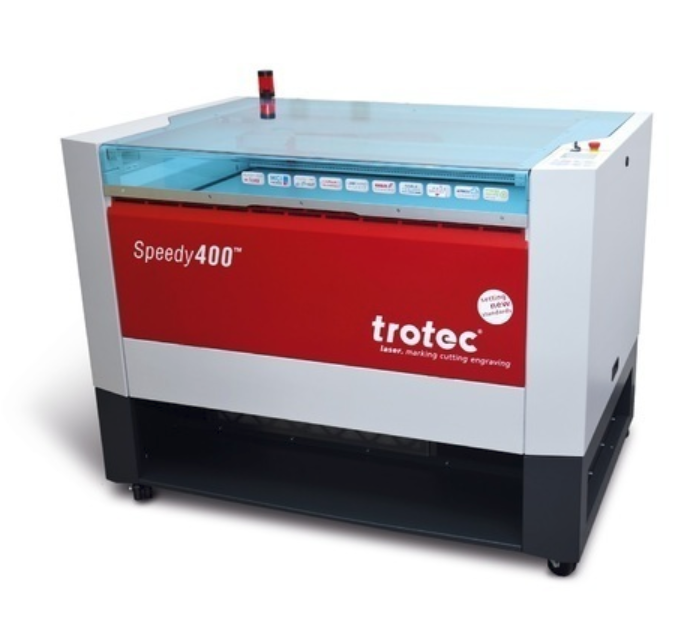

Trotec Speedy 400

A collection of items that relate to the Printer

Trotec Speedy 400

The fastest and most productive flatbed laser cutter & engraver on the market.

Process

  • CO₂ Laser Cutting and Engraving

Material (Min-Max)

  • Acrylic
  • ABS
  • Wood

Build Area

  • 1000 mm x 610 mm (39 x 24 in)

Printer Benefits

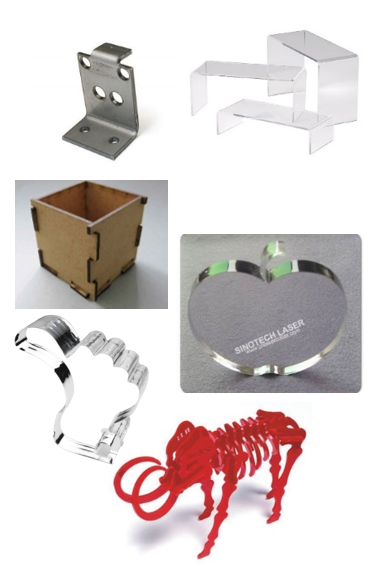

  • Quickly manufactures parts with uniform 2D cross-sections.
  • Greater production capacity
    • High-speed processing, optimized work area, speedy laser engraver (140 IPS)
  • Endless applications
    • Electrical components, jewelry, medical technology, packaging design, and fashion

3D Scanning and Metrology

CREAFORM Go!

Creaform with portable stand

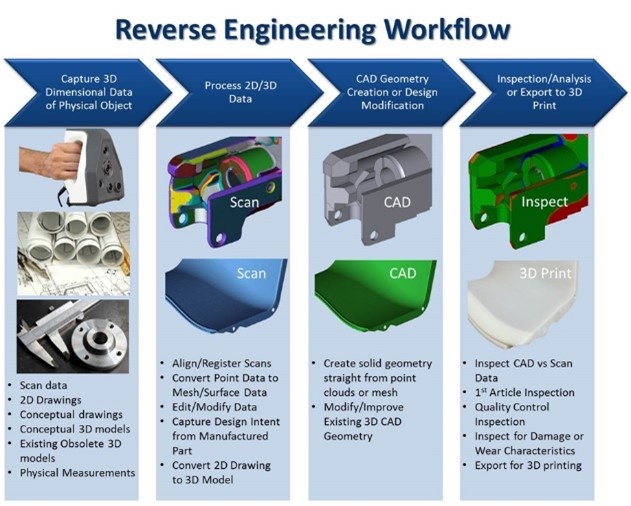

reverse engineering workflow chart



CREAFORM GO!SCAN SPARK & UR5

Simplifying design, engineering, manufacturing, development, and testing.

Equipment of the 3D Scan bundle

  • Universal Robot UR5 –collaborative robot with portable stand – reach 850mm (33.5in)
  • Creaform Go!Scan Spark portable self-positioning white light scanner system that can be mounted on UR5 for automated scanning
  • Streamline automation software with interactive common interface
  • VXmodel & VXinspect software for 3D scan data inspection and integration into CAD and 3D printing processes
  • PolyWorks software bundle with Modeler and Inspector Premium for CAD Modeling and Quality Control/Inspection

Application Benefits

  • Capabilities
    • Captures physical objects
    • Reverses the scanned data into digital 3D objects or compares them with existing CAD data
  • Advantages
    • Speed - Fast cycle times compared to any other system
    • Easy to use – You do not need a specialized robot programmer, the software provides an interactive interface
    • Flexibility - Open design enables small and large sized objects
    • High accuracy - Measure parts up to 0.002” (0.050 mm)
